| Capacities | |
| Max Roll Weight Each | 880# [400kg] |
| Dimensions | |

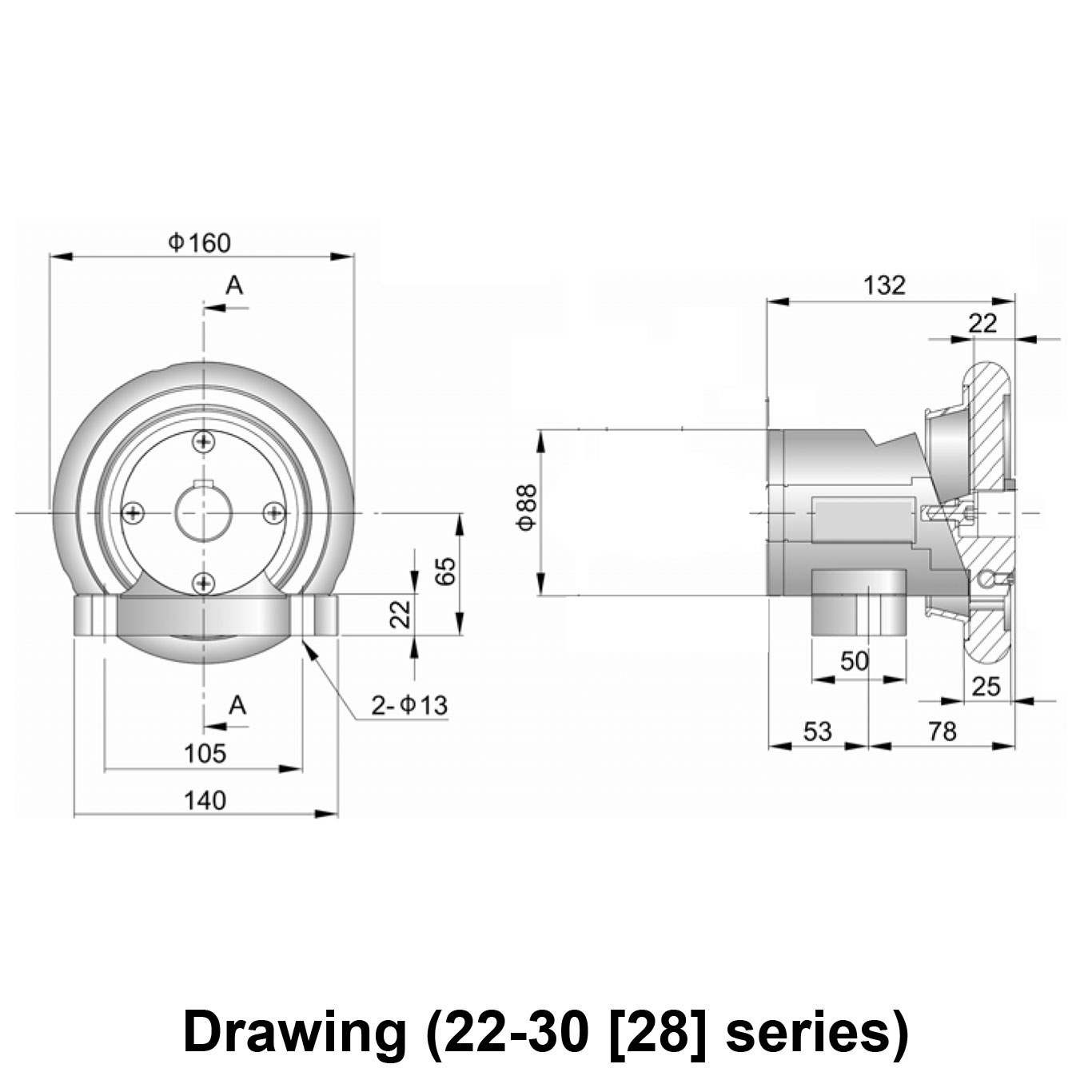

| Drawing |  |
| 3D Model | |
| Features | |
| Replaceable Insert | No |
| Sliding Adjustment | No |
| Installation | |
| Mounting | Foot |
Mounting Bolt Size |
0.437" (7/16") [12mm] Dia. |

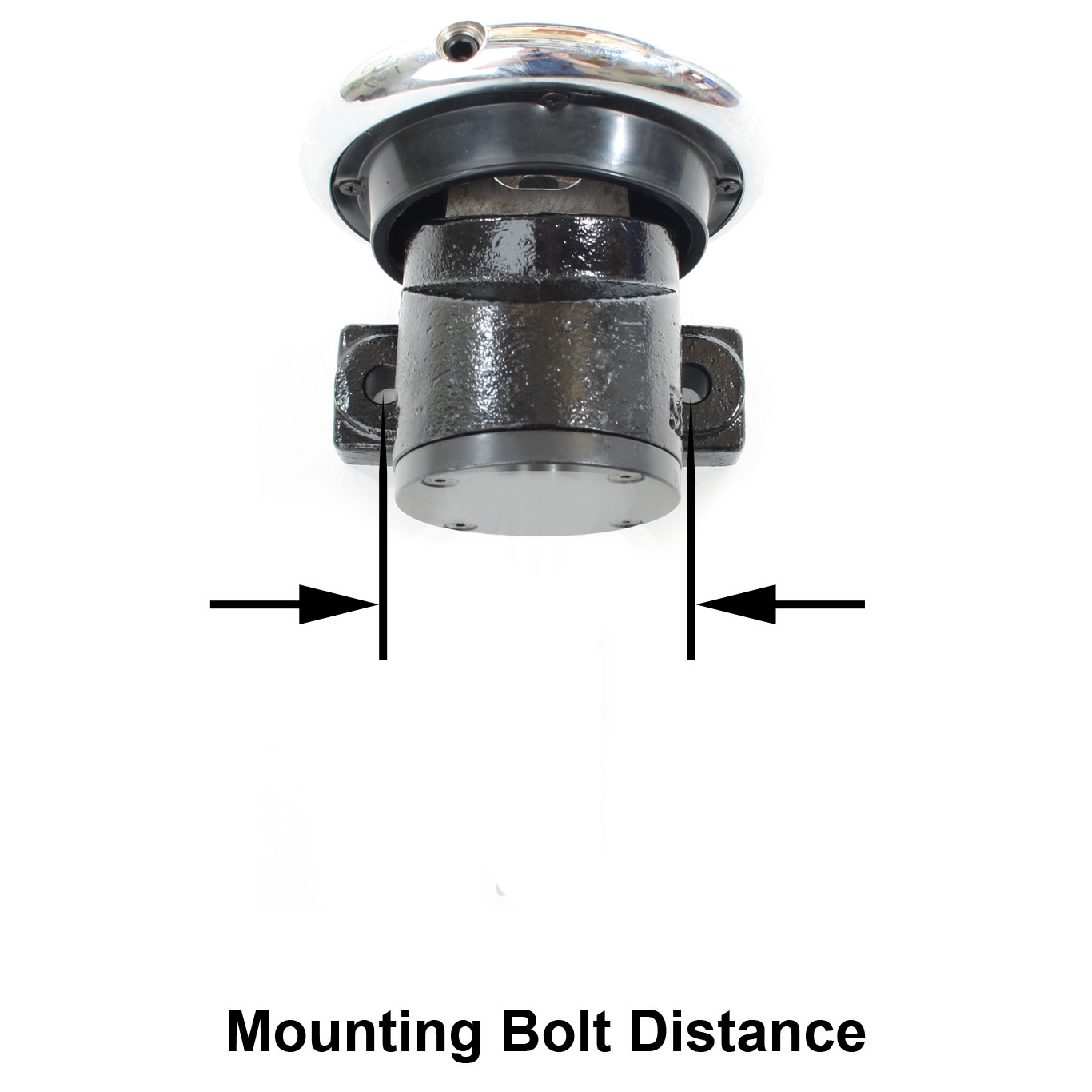

Mounting Bolt Distance |
4.133" (4-1/8") [105mm] |
| Winding Shaft Length Requirement |  |

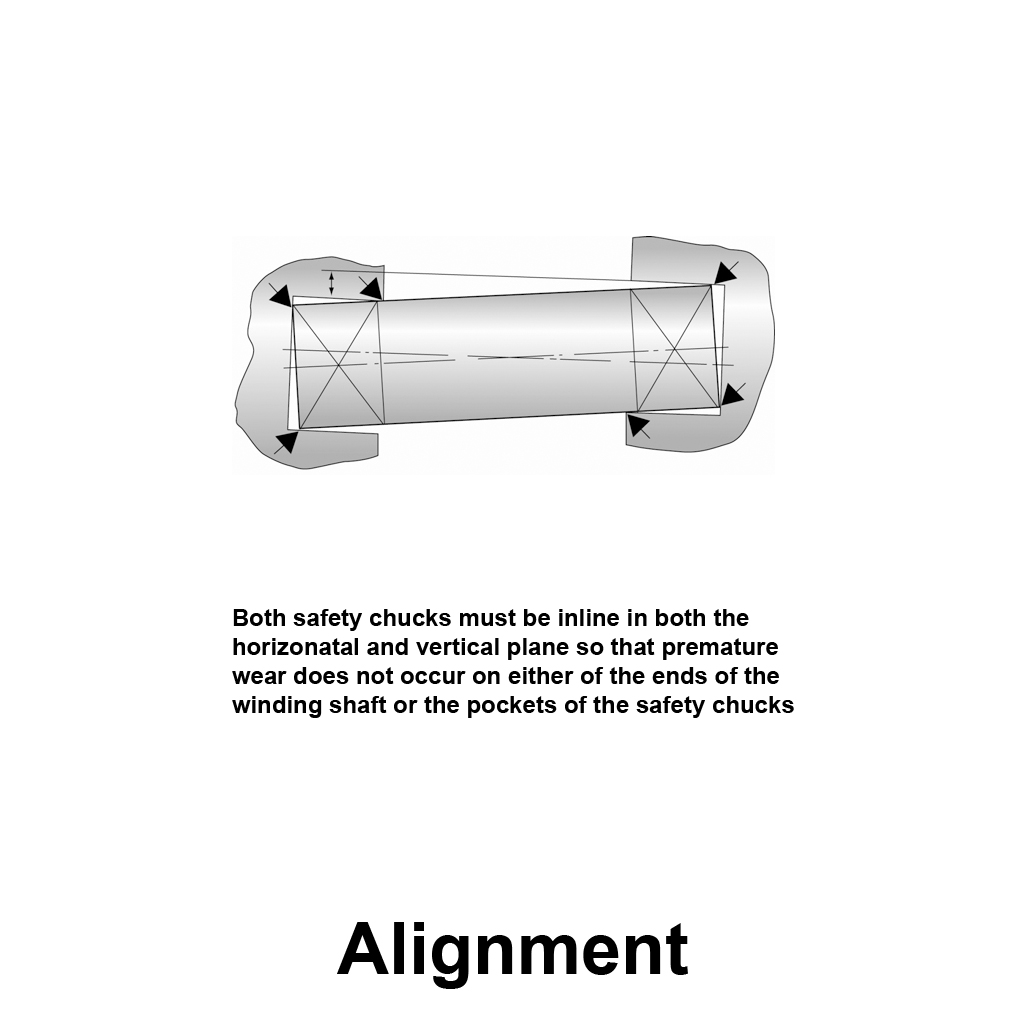

| Alignment |  |
| Support | |
| Phone and email Support | |
| Warranty | |
| Replacement Parts | |
| Compare To | |
| Boschert | 22-30 |
| Condition | |
| Product Condition | |
Safety Chuck Housing, Bearings, Cap, Hand-wheel w/ black guard, pin, spring and balls (no shaft)
- Brand: JRC Web Accessories Categories: - Replacement Parts
- Part #: 501640
- Availability: Ships in 2 - 4 weeks from our factory in Fairfield, NJ USA
-
$325.44 Each
-
-
Quantity Discount
1
2-41.5%
5-92.5%
10-147.5%
15-2410%
25-4915%
50+17.5%
